Compare the enclosure, then confirm the model number on your generator’s identification label.
21 photo references
Generac

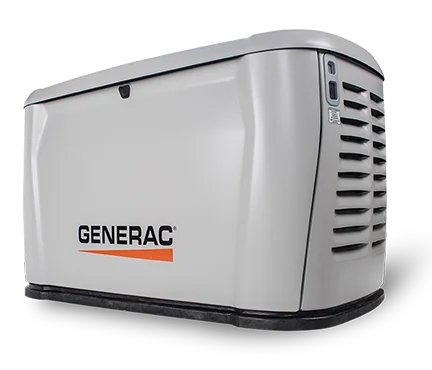

Photo model G0072820
Rounded silver cabinet with dark base trim and a vented end panel.
Shop-confirmed L × W × H46.4 × 30.7 × 26.3 in.
Current home standby enclosure. Orientation confirmed from WYG production measurements.
Generac

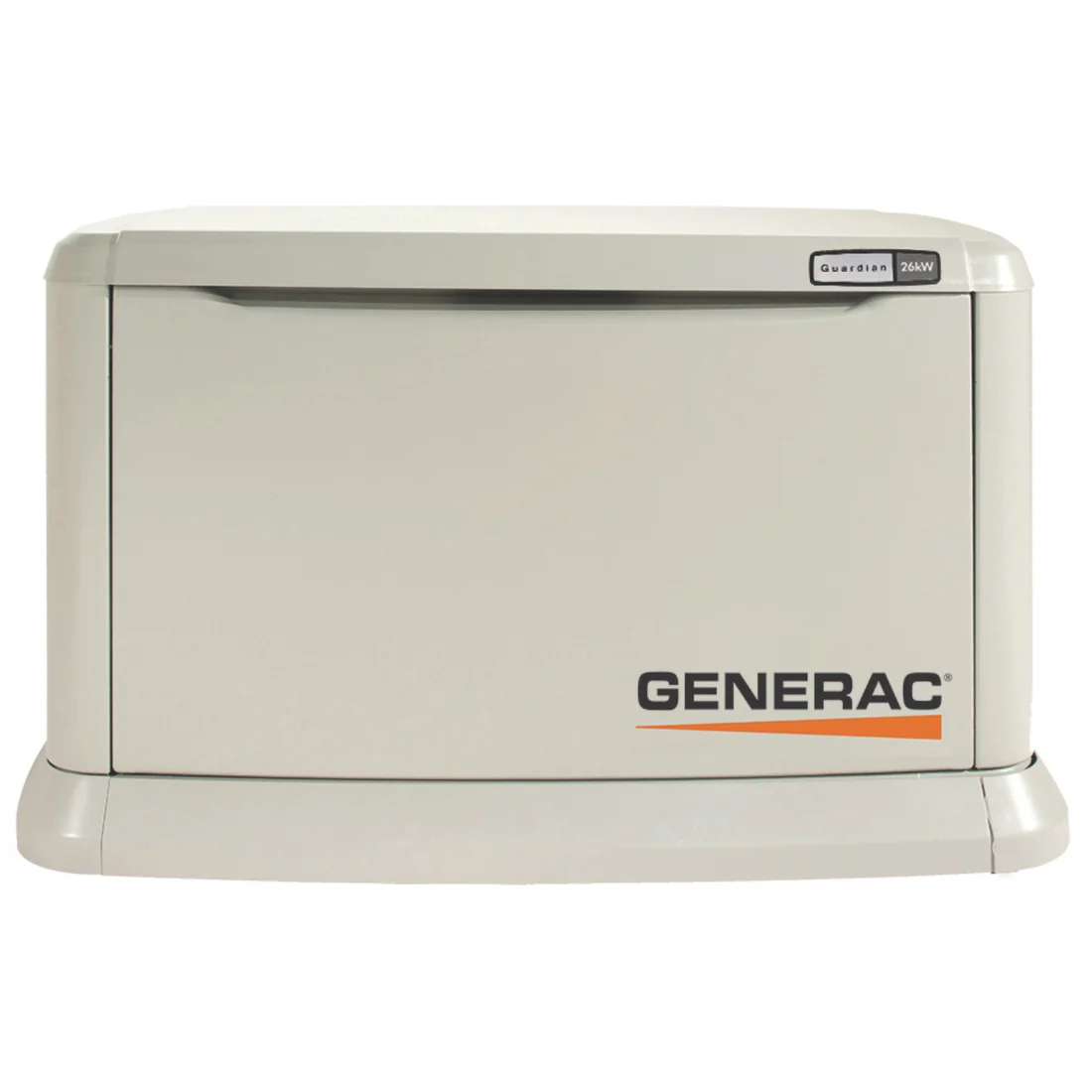

Photo model G0072900
Straight-sided beige cabinet with a broad front access panel.
Shop-confirmed L × W × H48 × 29 × 25 in.
Guardian enclosure; separate from New Generation. Orientation confirmed from more than 40 WYG installations.
Generac

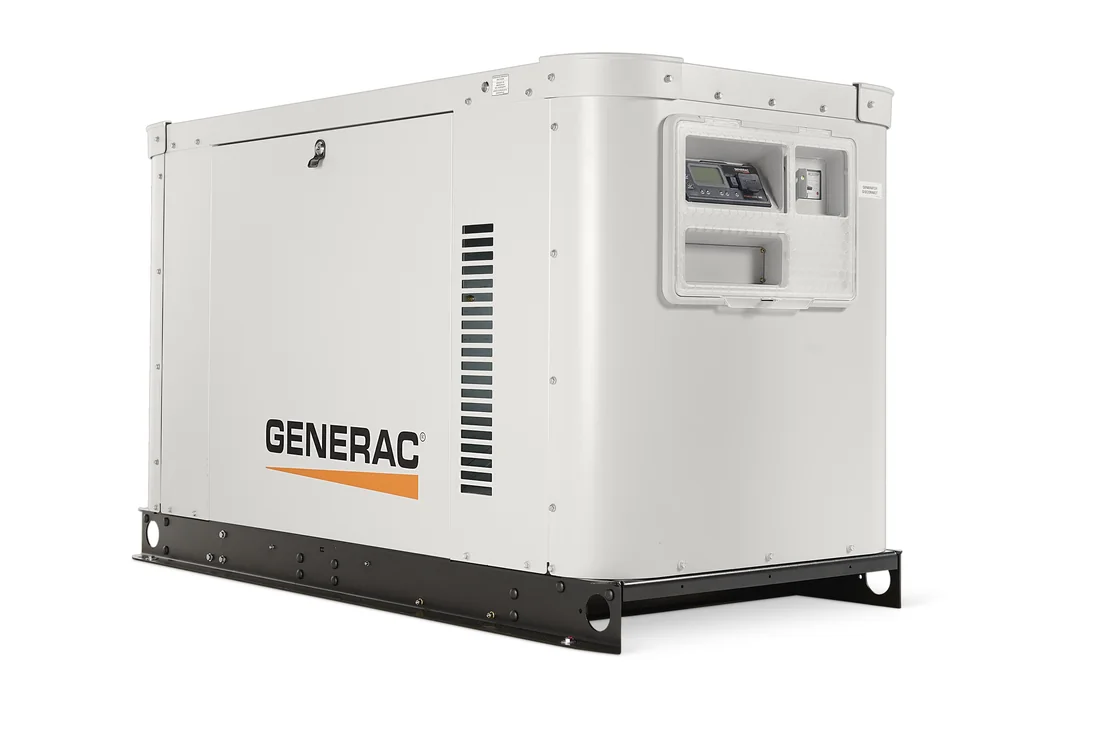

Photo model XG02525CUAX
Tall, rectangular enclosure with vertical vent panels and a black base.
L × W × H66.6 × 32.6 × 40.7 in.
Listed model: 208/240/480 V, 3-phase, CA–MA emissions. Manufacturer family photo.
Generac

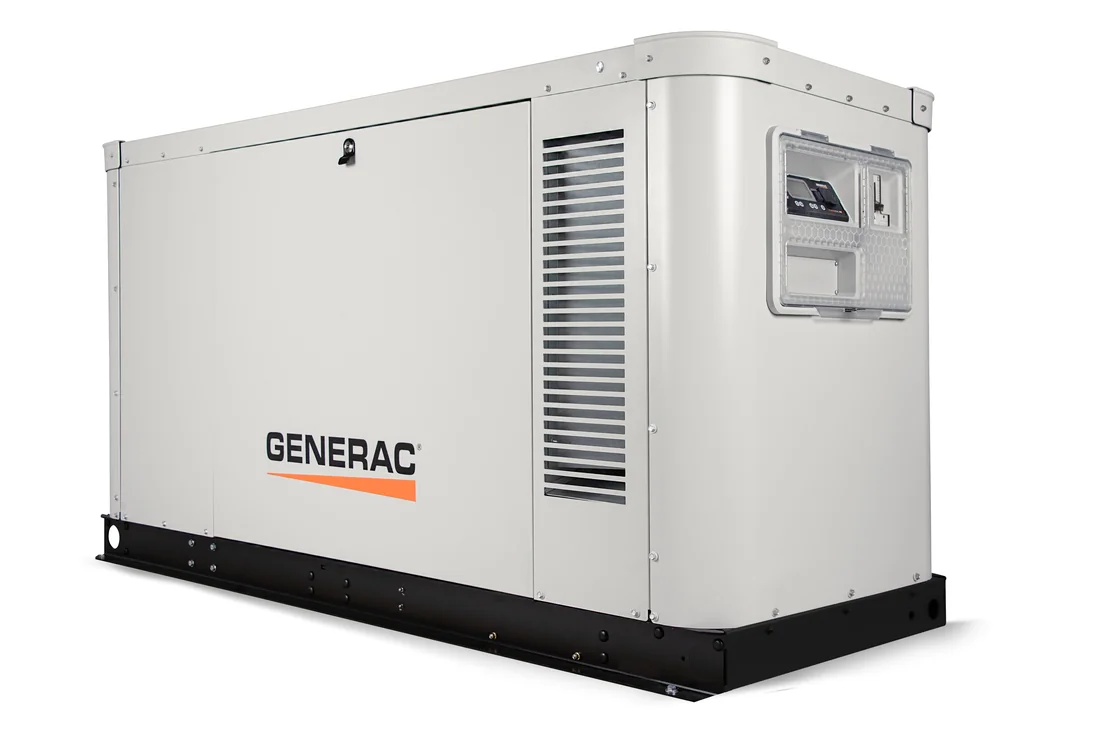

Photo model XG03245ANAX
Large rectangular cabinet; compare vent panels and the control access area.
L × W × H83.4 × 34 × 45.2 in.
Listed model: 120/240 V, single phase. Manufacturer family photo; confirm the exact enclosure.
Generac

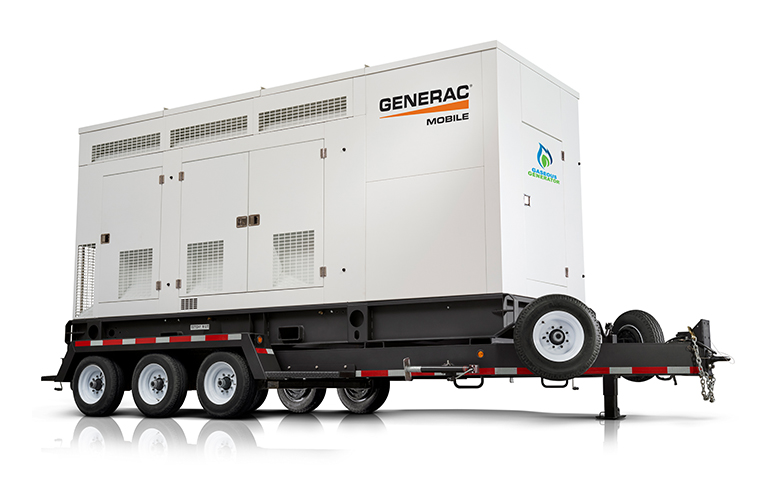

Photo model MGG450
Large mobile unit shown on a wheeled trailer.
Overall L × W × H · with trailer253 × 102 × 131 in.
Prime power · 60 Hz · natural gas
Photo shows the trailer-mounted configuration. Skid-only unit: 204 × 72 × 101 in. Exact configuration may vary.
Kohler / Rehlko
Photo model 14RCA
Wide cabinet with a curved lid edge. Check the label: RCA photos look alike.
L × W × H47 × 26.2 × 32.2 in.
The manufacturer uses the same photo for 14RCA, 20RCA and 26RCA. The model label distinguishes them; listed dimensions vary.
Kohler / Rehlko
Photo model 20RCA
Wide cabinet with a curved lid edge. Check the label: RCA photos look alike.
L × W × H47 × 26.2 × 32.2 in.
The manufacturer uses the same photo for 14RCA, 20RCA and 26RCA. The model label distinguishes them; listed dimensions vary.
Kohler / Rehlko

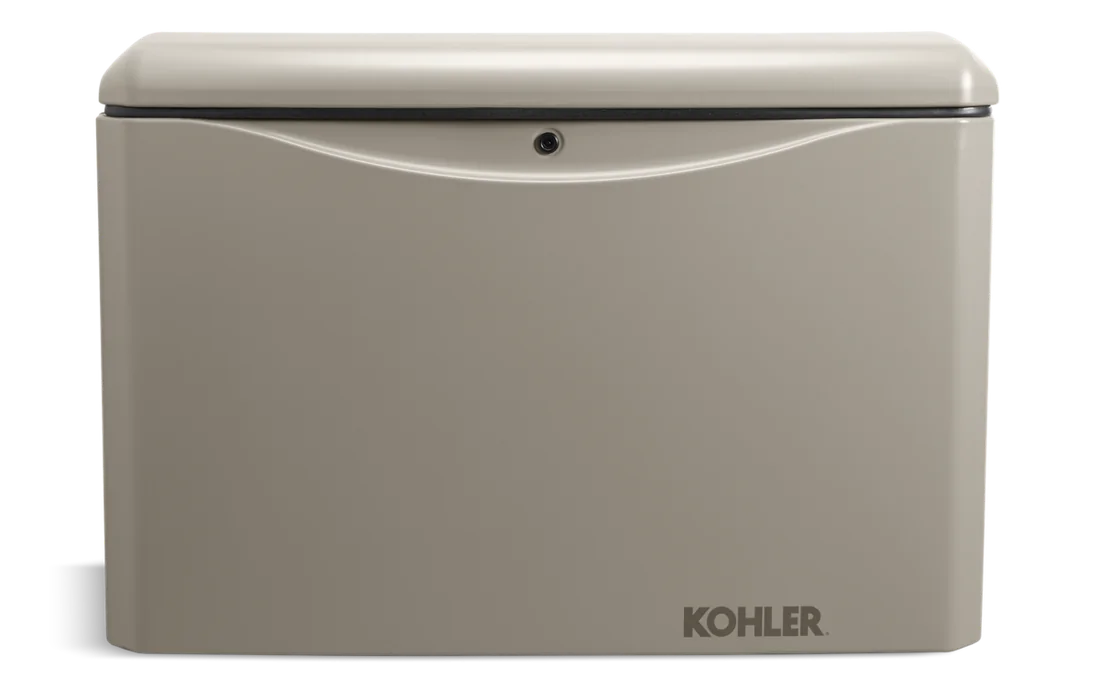

Photo model 26RCA
Wide cabinet with a curved lid edge. Check the label: RCA photos look alike.
L × W × H47 × 26 × 32.3 in.
The manufacturer uses the same photo for 14RCA, 20RCA and 26RCA. The model label distinguishes them; listed dimensions vary.
Kohler / Rehlko

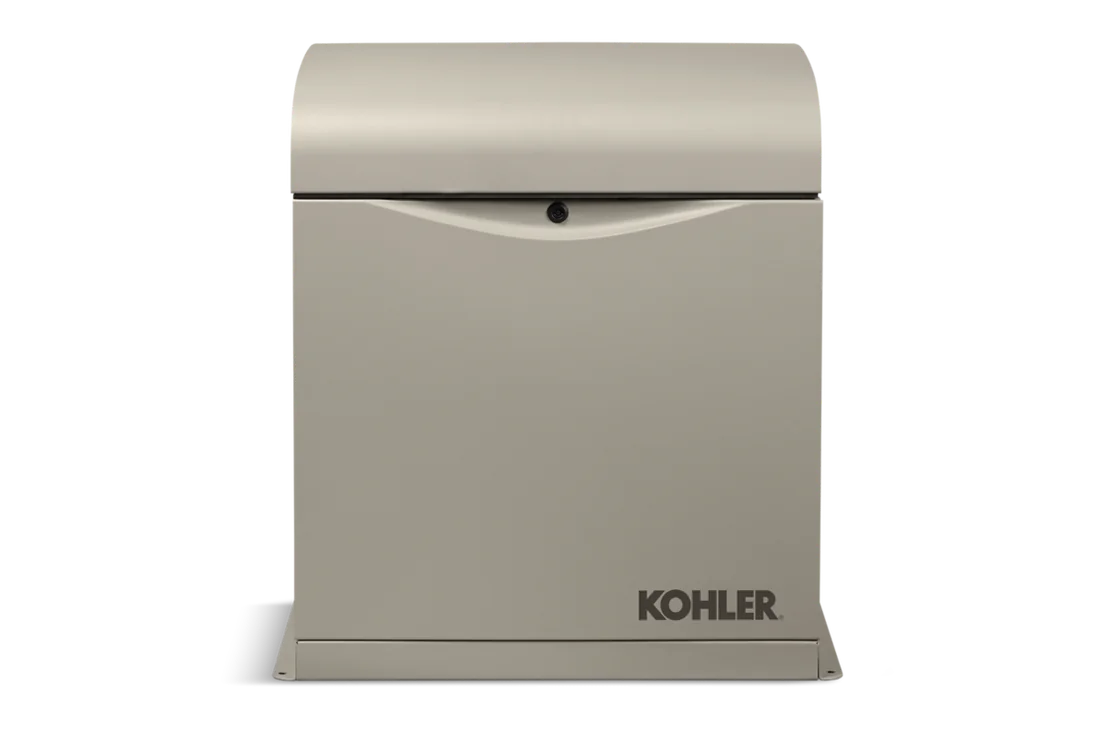

Photo model 12RESV
Narrow upright cabinet with a rounded lid and Kohler logo at the bottom.
L × W × H30.6 × 28 × 32.4 in.
Compact RESV enclosure.
Kohler / Rehlko

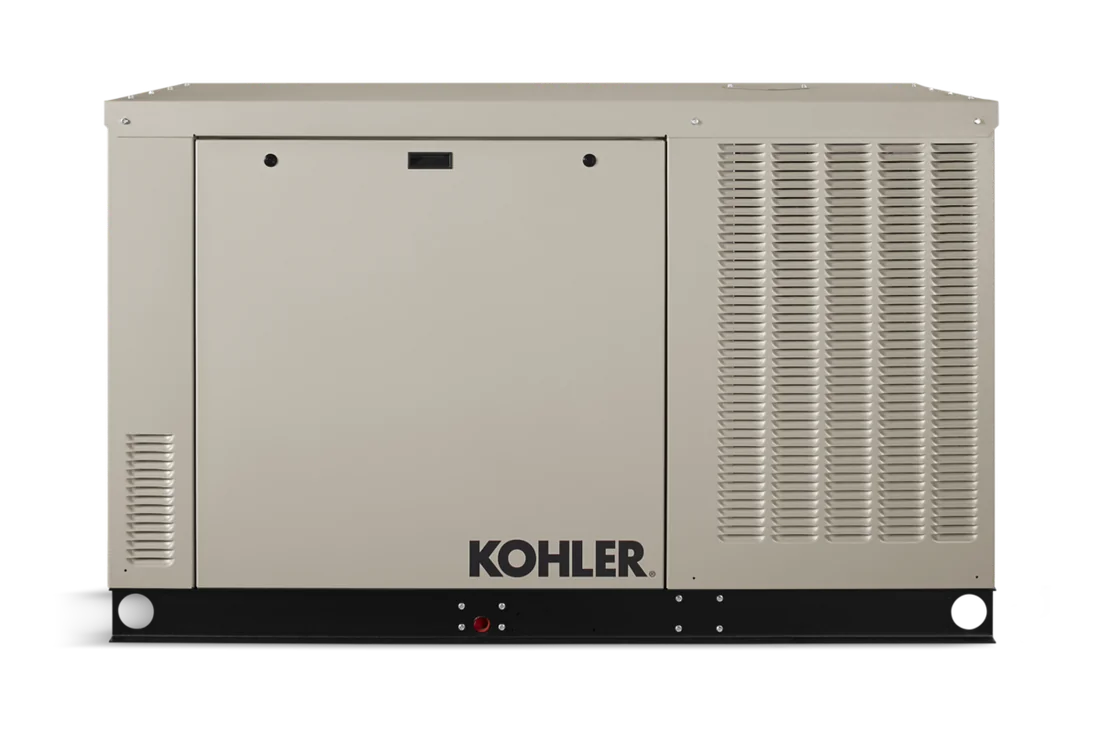

Photo model 24RCLA
Long, low enclosure with broad vertical vent panels.
L × W × H74 × 32.9 × 46 in.
Kohler / Rehlko

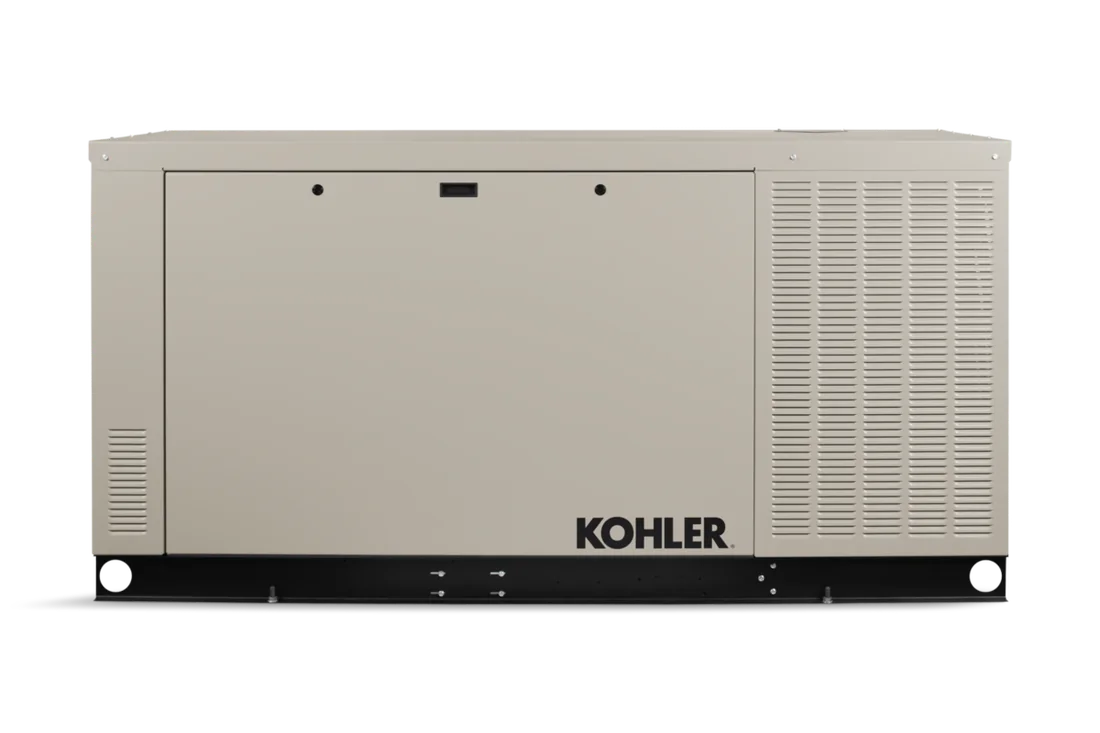

Photo model 48RCLC
Long liquid-cooled cabinet. Match the model label and overall length.
L × W × H89.8 × 32.9 × 46.5 in.
Briggs & Stratton

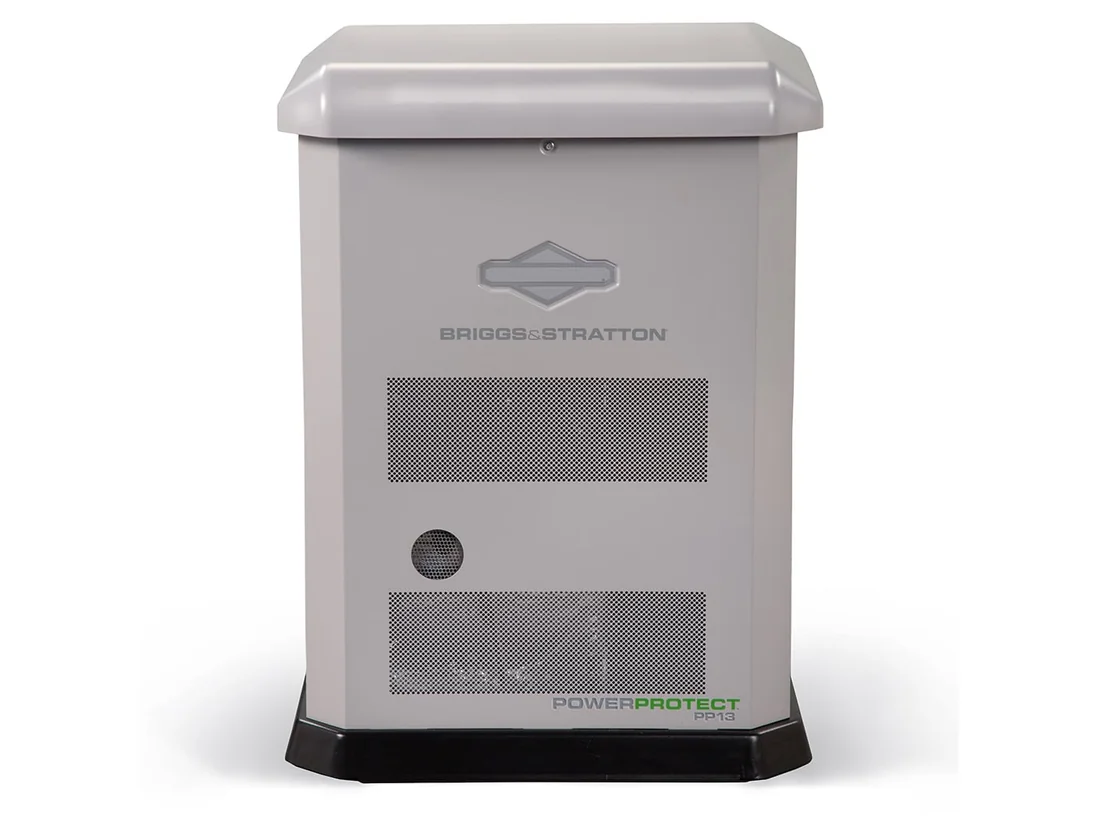

Photo model 040746
Compact upright cabinet with a vented front panel.
L × W × H28.5 × 25.5 × 37.6 in.
Compact upright enclosure.
Briggs & Stratton

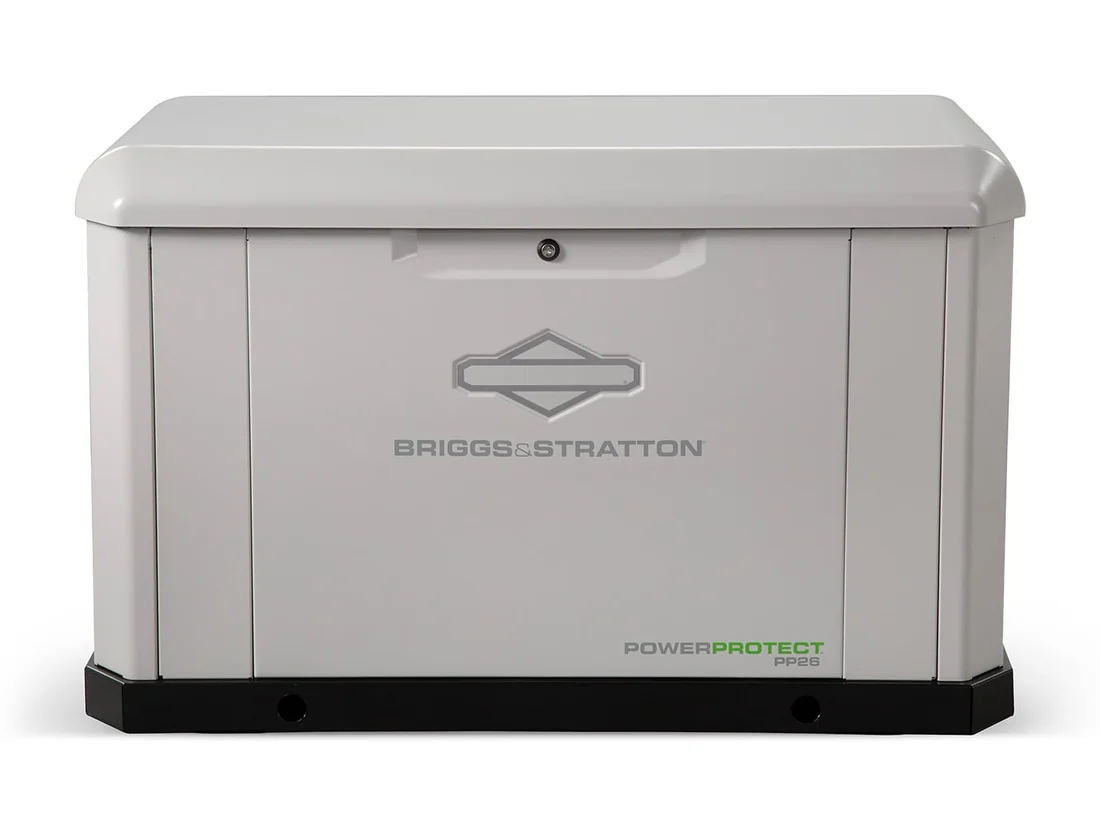

Photo model 040806
Wide cabinet with a rounded lid and black lower trim.
L × W × H46.5 × 26.8 × 28.4 in.
Briggs & Stratton

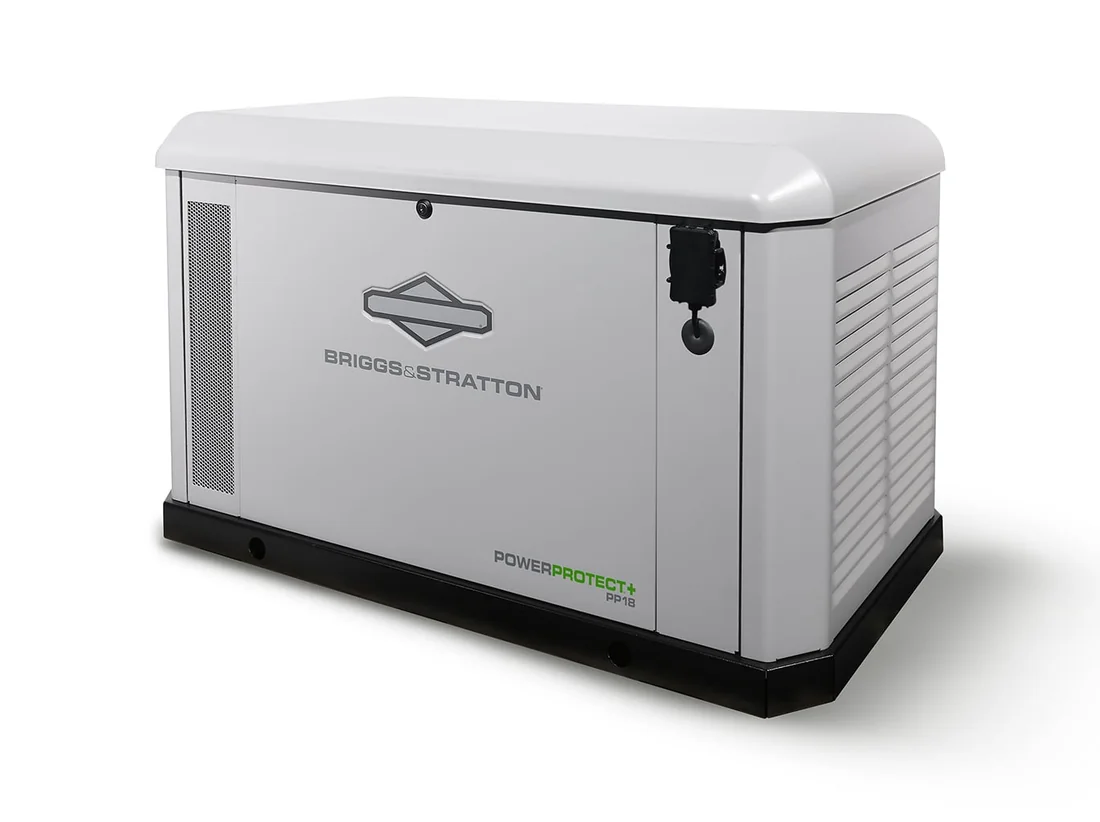

Photo model 040757
Wide cabinet with a vented end panel and visible side latches.
L × W × H46 × 27 × 28 in.
PowerProtect+ enclosure; separate from PowerProtect and DX versions.
Cummins

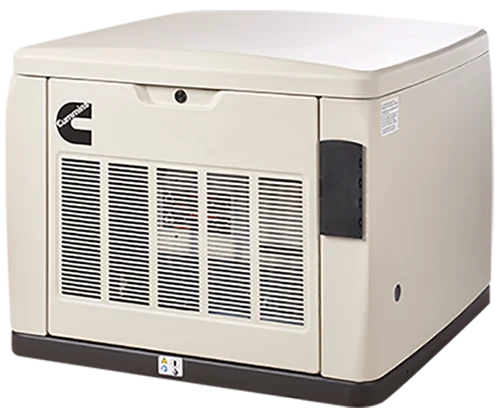

Photo model RS13A
Cream cabinet with large horizontal louvers and a rounded top.
L × W × HMeasurements to confirm
Confirm the exact model on the generator label.
Cummins
Photo model RS25
Long cream enclosure with flat access panels on a black base.
L × W × HMeasurements to confirm
Confirm the exact model on the generator label.
Champion

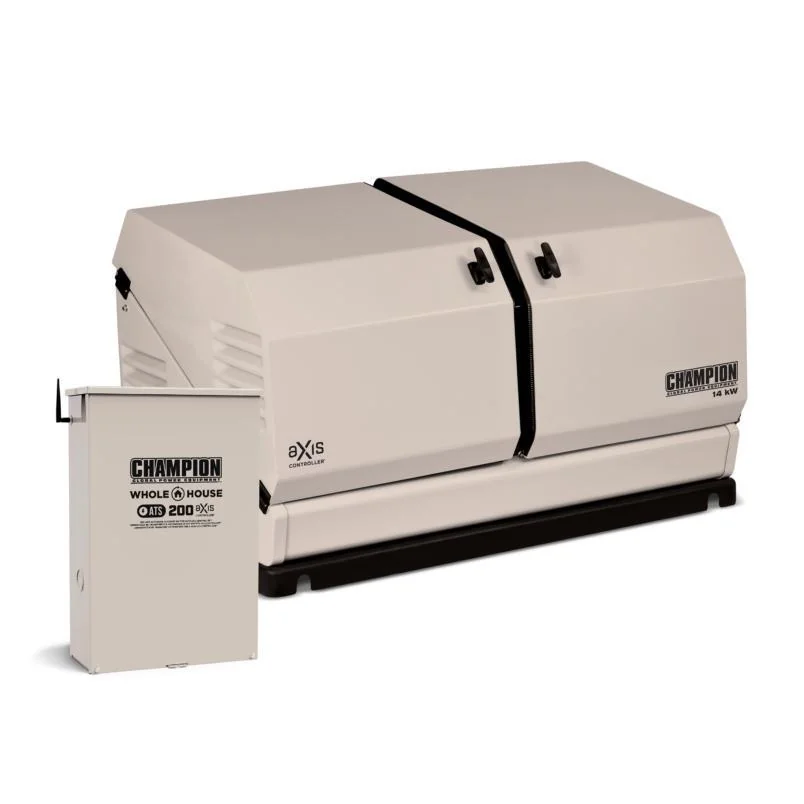

Photo model 100515
Long cream cabinet with an angled lid and center seam.
L × W × HMeasurements to confirm
The generator number can differ from the complete system number. Transfer switches pictured beside the generator are separate equipment.
Champion

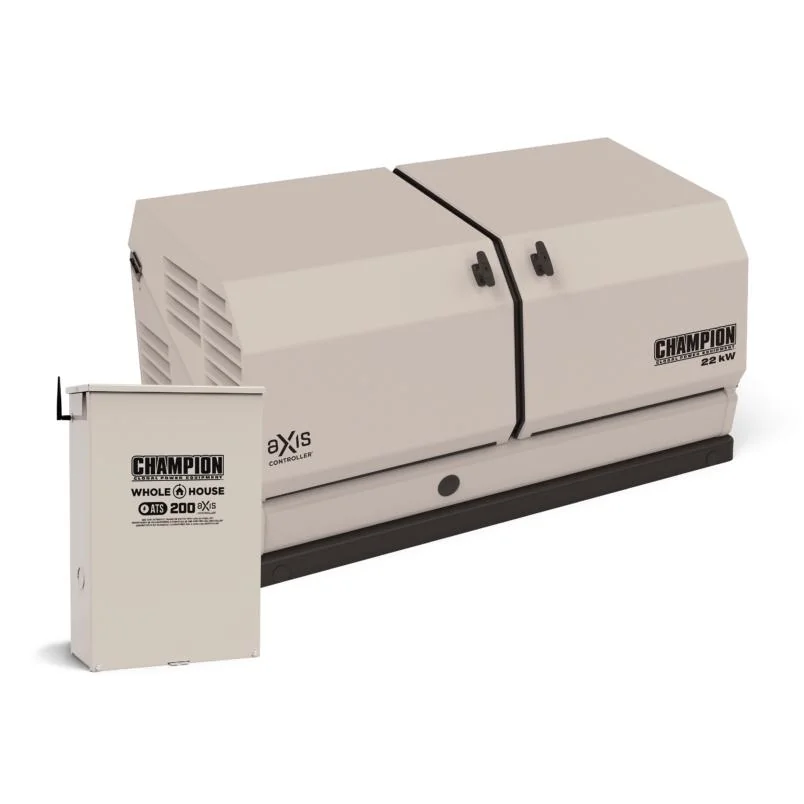

Photo model 100304
Similar aXis shape; use the label to distinguish the power rating.
L × W × HMeasurements to confirm
The generator number can differ from the complete system number. Transfer switches pictured beside the generator are separate equipment.
Champion

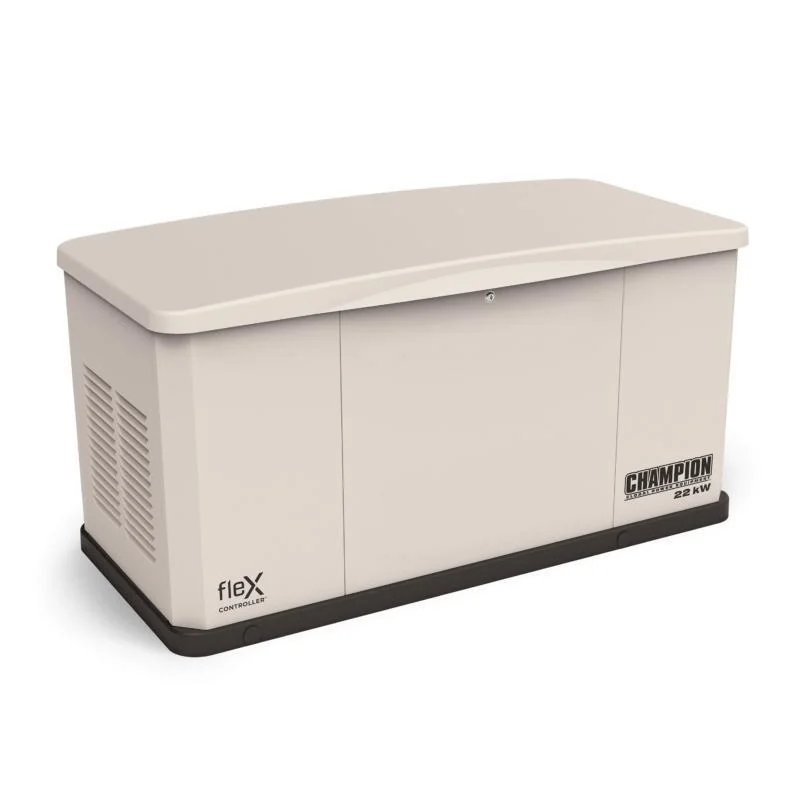

Photo model 201202
Straight cream cabinet with a broad flat face and fleX badge.
L × W × HMeasurements to confirm
The generator number can differ from the complete system number. Transfer switches pictured beside the generator are separate equipment.
Champion

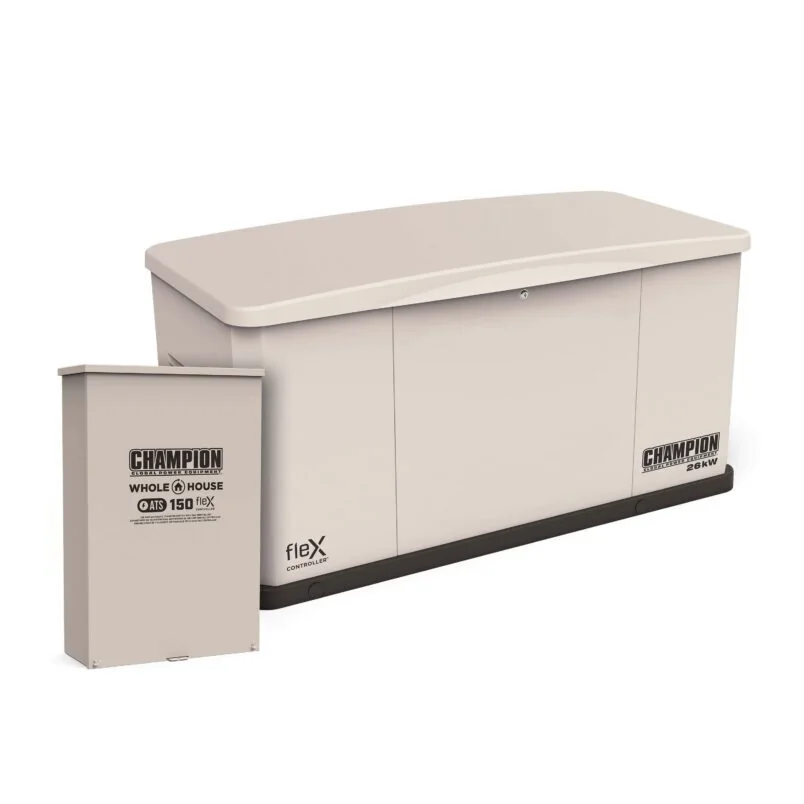

Photo model 201244
Similar fleX shape; use the generator number to confirm the rating.
L × W × HMeasurements to confirm
The generator number can differ from the complete system number. Transfer switches pictured beside the generator are separate equipment. The pictured transfer switch differs from the bundle on the linked page.
Champion

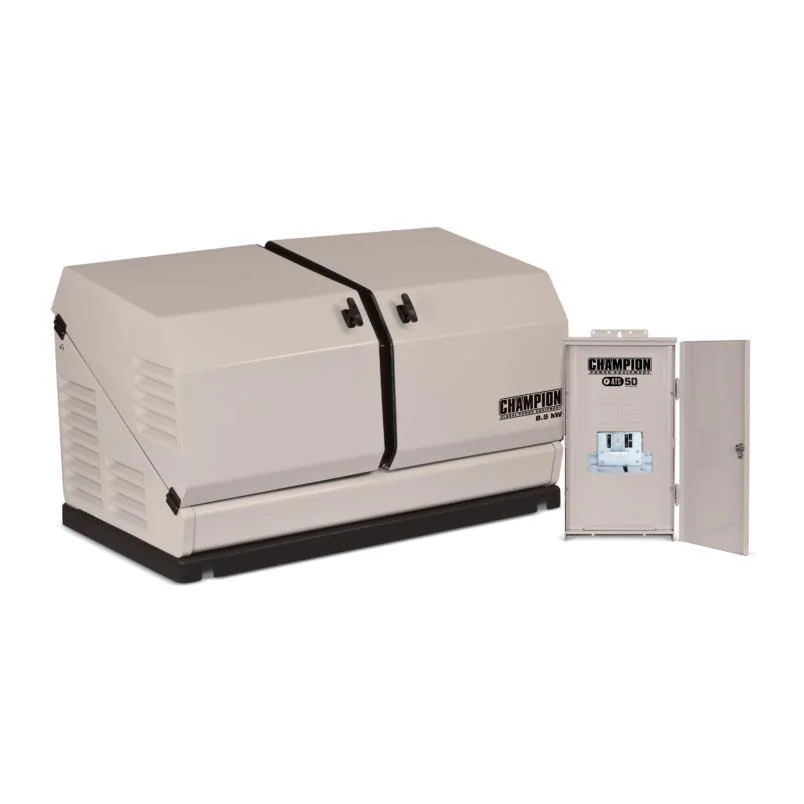

Photo model 100199
Cream cabinet with an angled lid; match the generator label.
L × W × HMeasurements to confirm
The generator number can differ from the complete system number. Transfer switches pictured beside the generator are separate equipment.
Manufacturer references checked September 10, 2026. Photos may represent multiple ratings; dimensions apply only to the listed model or configuration. Exact wrap fit is confirmed before production. Manufacturer names and photos identify the equipment.
